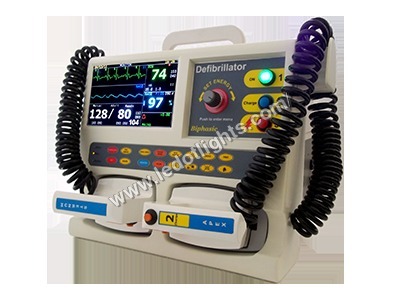

BIPHAGIC CARDIAC MONITOR WITH Defibrilator

BIPHAGIC CARDIAC MONITOR WITH Defibrilator
BIPHAGIC CARDIAC MONITOR WITH Defibrilator
Product Code : 88
Product Description

              Cardiac monitor with defibrillator

1. General

Display : 7”Colour TFT

Display area : 150 mm x 90 mm

Dimensions : H280 x W 330 x D220 mm (Max) without Paddle

Weight : Approx.6 Kgs.





2. Power Supply

Input : 150 - 276 VAC, 50 Hz, 1 Ø

Battery : 12 V 4.5Ah, Rechargeable

Back-up time : 3 hours min. on full charge in ECG mode

 70--100 shock of 150 Joules deliveries (Full charge).

Power consumption : 30 Watts (max.) in ECG mode

3. Environmental

Operating Temp. : -5ºC to +50 ºC

Humidity : up to 95 % non-condensing

4. Defib

Operating Mode : Manual

Waveform : Biphasic

Energy : 2 to 200 joules in 12 steps selection

Synchronous Cardio Version : Energy delivery begins within 60 ms of the QRS Peak

Charging Time : Less than 8 seconds

Paddle Assembly : External paddle assembly with coil retractable high

 voltage cable. Adults & Pediatric paddle integrated to

 same handle

Check Mode : Manual test mode

Operation : By front Panel keyboard,Encoder and ON-OFF by front

panel push button

5. ECG

Frequency response : 0.5 Hz to 35 Hz

Patient isolation : Optical isolation

Lead selection : Lead I, II and III

Gain setting : 0.5, 1.0 and 2.0

CMRR : > 90 db

Sweep Speed : 12.5, 25.0, 50.0 mm/sec

Digital filter : Digital signal processing for good quality of ECG

6. Heart Rate

Range : 10 – 250 BPM

Accuracy : +/- 2 BPM

Resolution : 1 BPM

Tone : Beep on every QRS detected

Low alarm limit range : 10 – 250 (step of 1)

High alarm limit range : 10 – 250 (step of 1)

7. Printer

 Paper Type : Thermal paper 50/55mm width, 20 meters length for 2 inch

printer

 Event Printing : Prints 5 Seconds pre & post ECG with Date, Time, Energy and

mode, Shock Status

 ECG in Defib Mode : Prints last 10sec ECG through paddle

 Print Annotates in Defib Mode: Time, Date, Mode, lead name, gain, sweep speed

 ECG in Monitor Mode : Prints last 10 ECG through cable

 Print Annotates in Monitor Mode: Time, Date, selected Lead name, Gain, Sweepspeed

 Manual Defib Check Mode: Prints the status of Shock, Energy, Date and Time

8. SpO2(optional)

Range : 0 - 100%

Accuracy : 70 - 100% +2 digits, 50 - 69% +3 digits

Pulse rate : displayed when PR is deselected

Pulse beep : Stepless volume control

PR Range : 10 to 250 bpm (+/- 2 bpm)

Pitch variation with change in oxygen saturation.

9. NIBP(optional)

Systolic, Diastolic and Mean arterial pressure

 Range : 10-250mmHg

Method : Oscillometric

NIBP interval : User selectable - 3 min. to 120 min

Modes : Manual, auto

Cuff deflation : Automatic

Safety features : Automatic deflation if cuff pressure exceeds 280 mmHg

NIBP status display as:

“Ready”, when not taking reading

“Measuring”, when taking reading and

“Error”, if reading could not be taken due to some error while measuring

 Patient Type : Adult, Pediatric, Neonate

10. AED Mode (optional)

Wave form : Biphasic

AED Shock Series : Energy level from 150 to 200J

Charge Command : Automatic after identifying arrhythmia

Shock Command : front panel button, shock

Charging Time : Less than 8 Sec

Controls : Analyze, Pause

Defibrillation Electrode: Malfunction, Self adhesive, adult electrodes

Voice and Text prompts: Voice and text prompts to guide user

11. PACER ( Optional)

Wave form : monophasic

Modes : Demand or Non Demand

Amplitude : From 10mA to 150 mA (resolution of 10 mA),

Pulse Width : 40 ms (+/- 1ms)

Frequêncy : From 20 ppm to 250 ppm (increments of 1 ppm),

Refractory period : 340 ms (from 30 to 80 ppm); 240 ms

(from 90 to 180 ppm).

Maximum output voltage: 150 V.

Impedance range : 200ohm to 1 k ohm
